How do I keep contaminants out of my fuel system?

The fuel selector valve works in unscreened fuel. Contaminated fuel can cause selector valve seal damage. When fueling from possibly contaminated fuel sources McFarlane recommends the use of a fuel filter, such as Mr. Funnel or another filtering device, to reduce trash in the fuel system.

What pressure is used to test the fuel selector valves after repairs?

We pressure test our repaired valves to a minimum of 5 psi using precision controlled air pressure and a calibrated low pressure indicator. This pressure is above the normal fuel pressure on the valve and below the limits of the springs in the valve. Each valve is submerged in Stoddard solvent while the air pressure is applied to the valve. The valves are then tested in each position to assure that there are no inter-port or external leaks. Leaks are detected by looking for air bubbles escaping from the valve.

How do I know when to replace or service my fuel selector valve?

The most common indication of external fuel valve leaks is the smell of avgas in the cabin. Most valves are located under the cabin floor. Fuel stain on the valve and drain plug or drain valve or on the belly of the aircraft can also indicate external leakage. External leaks are generally around the actuation valve stem. Internal leaks are detected when the fuel is turned off and fuel continues to drip during fuel system maintenance. Inner port leakage will allow fuel from one tank to leak into another fuel tank. This type leak is difficult to detect. Fuel transfer from one tank to another with the fuel valve selected to one tank only will indicate inner-port leakage. An extended period of time is needed to detect fuel transfer from one tank to another. Generally if internal leakage is detected when servicing the fuel system, it is likely there is also inner-port leakage.

Your Cart

Items

Total

Shipping and taxes calculated at checkout

Your Cart

0 Items

Total $0.00

Shipping and taxes calculated at checkout

View Full Cart Checkout

Home / Shop Parts / 0716613-1S

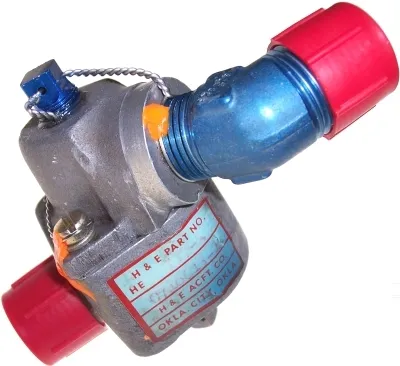

P/N: 0716613-1S

Name: VALVE, Fuel, Repaired w/core
Brand: McFarlane Aviation
SKU: 0716613-1S
Availability: BackOrder

VALVE, Fuel, Repaired w/core

Jump to product details

Please verify that this product is eligible for your aircraft before adding it to your cart.

Click here to view product eligibility

Share this product:

Approval	FAA TC
Condition	Repaired
Manufacturer	McFarlane Aviation
Dimensions	L: 4 x W: 4 x H: 4 in
Weight	0.48 lbs
Unit of Measure	Each
Retail Price	$0.000
Your Price	$0.000 + $0.000 Core Charge

Eligible Aircraft

Supersedures

Alternates

Documents

FAQs

Potential Alternates

Supersedures

Please verify that this product is eligible for your aircraft before adding it to your cart.

OEM Part Number	McFarlane Part Number	Comment
5037-1	0716613-1S
0716613-1	0716613-1S

Frequently Asked Questions

Eligible Aircraft

Make	Model	Start S/N	End S/N	Quantity Per Aircraft	Location	Eligibility Chart
Cessna	182E	18253599	18254423	1	Fuel Selector Valve	6249
Cessna	182F	18254424	18255058	1	Fuel Selector Valve	6249
Cessna	182G	18255059	18255844	1	Fuel Selector Valve	6249
Cessna	182H	18255846	18256684	1	Fuel Selector Valve	6249
Cessna	182J	18256685	18257625	1	Fuel Selector Valve	6249
Cessna	182K	18257626	18258505	1	Fuel Selector Valve	6249
Cessna	182L	18258506	18259305	1	Fuel Selector Valve	6249
Cessna	182M	18259306	18260055	1	Fuel Selector Valve	6249
Cessna	182N	18260056	18260825	1	Fuel Selector Valve	6249
Cessna	182P	18260826	18262465	1	Fuel Selector Valve	6249
Cessna	182P	18262466	18265175	1	Fuel Selector Valve	6249
Cessna	A182J	A182-0001	A182-0056	1	Fuel Selector Valve	6249
Cessna	A182K	A182-0057	A182-0096	1	Fuel Selector Valve	6249
Cessna	A182L	A182-0097	A182-0116	1	Fuel Selector Valve	6249
Cessna	A182N	A182-0117	A182-0148	1	Fuel Selector Valve	6249

Eligibility Chart 6249 Notes

Related Categories

Product Details

New Fuel Selector Valve Assemblies

FAA-PMA approved for Cessna 150 thru 195 aircraft

Better corrosion resistance
Improved O-ring retention
More balanced fuel flow

Why not just repair my valve?
Many of the original valves have too much damage to be repaired cost-effectively. The original Cessna fuel valve that started in model 170 was a simple but ingenious cam ball design that has proven very reliable over the years. McFarlane has repaired a lot of these original Cessna valves, and we know them well. However, we are now rejecting a big percentage of the valve cores sent to us. A lot of them have corrosion damage in the main body that is too severe to fix, or the O-ring retention area is damaged and too rough to seal. Many of the fittings are corroded through. The cam bearing is brass and easily corrodes the aluminum alloy cam.

Fuel Valves group (fuel-valves-group.png)

Overhauled Fuel Selector & Fuel Shut-Off Valves

Repaired assemblies available for Cessna 150 thru 320 aircraft

Overhauled by experienced technicians
Cleaned, inspected, and assembled with all fluorocarbon O-rings, seals, gaskets, hardware, and parts as required
Pressure tested for leaks and evaluated for proper fuel flow

Seal kits, repair kits, and replacement components also available!

Seal kits and repair kits are available for varying Cessna 150 thru 320 aircraft. Replacement components are available for all new McFarlane fuel valve assemblies.

Seal kits include all necessary O-rings and/or gaskets
Repair kits include all required hardware, seals, springs, O-rings, roll pins, washers, screws, balls, and plug
Replacement components available include covers, rotors, bodies, pins, and seals

To order components, go to Seal Kits, Repair Kits, or Replacement/Service Parts
